Two arms, short travel
The dual-arm arrangement is designed to keep picking travel short and support an efficient transfer sequence within the cell.

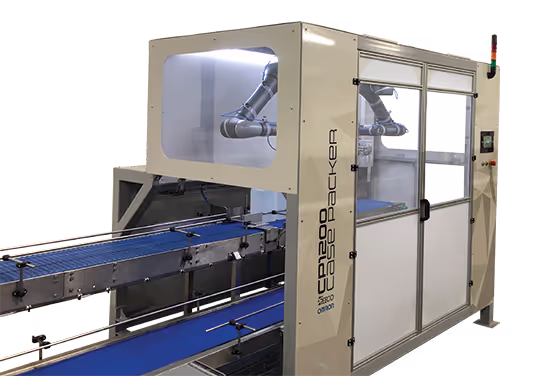

CP1200 · Dual-arm case packer
More capacity.
Consistent packing.
Automate higher-output case and tray packing with two OMRON robot arms. The CP1200 brings flexible tooling and EasyPack controls together for consistent product handling.
OMRON TM20, TM12 or TM14Gripper, vacuum or bespoke tooling
- Stated cycles per hour
- 1,200
- Robot configuration
- 2 arms
- TM20 payload per arm
- 20 kg
- Stated footprint
- 1,780 × 2,480 mm
Why CP1200More capacity.
More capacity.
A familiar approach.
When the line needs more output without moving to a large, complex packing system, the CP1200 keeps the cell compact: two robot arms, one integrated control point and product-specific tooling for boxes and trays.
Handling that follows the product
Choose side grippers, vacuum heads or bespoke tooling based on the product’s dimensions, weight, surface and packing pattern.
One view of the cell
Operators select stored programmes and loading configurations through one integrated EasyPack touchscreen.
Reeco CP1200 product demonstrationOpen YouTube ↗
See it in a workflow
Higher output, without unnecessary complexity.
The CP1200 is designed in collaboration with OMRON as a compact alternative to traditional packing systems. Reeco can assess the packing task, configure the tooling and prepare the system off-site before installation and line integration.
- Operating sequence configured around product, pattern and output.
- Standard side gripper width up to 380 mm.
- Integrated with the wider Reeco end-of-line approach.
End-of-line context
From packed case to finished pallet.
Case packing is one part of a connected end-of-line. This related Reeco demonstration shows how packed products can continue into palletising and downstream handling.
This is a related application film, not a CP1200 product specification video.
Related Reeco end-of-line demonstrationMore videos ↗
How it worksA repeatable process.
A repeatable process.
From infeed to case.
Reeco configures the CP1200 around your product, case or tray and required output. Two robot arms follow a defined sequence, using the selected tooling and packing pattern.
01 / Pick
Collect the product
The selected tool picks products from the infeed in the required quantity.
02 / Orient
Follow the pattern
The stored programme controls movement and orientation for the loading pattern.
03 / Load
Place into the case
Products are placed into the box or tray, ready for the next stage of your line.
Tooling & control
Talk through your product Configured around what you pack.
The right tool is selected with Reeco around the complete pick: product shape, load, surface, case geometry and required pattern.
Side grippers
A firm grip for suitable boxes or bottles, with a stated standard maximum gripping width of 380 mm.
Vacuum heads
Tailored vacuum tooling for products that are not suited to side gripping, with the surface and load in mind.
EasyPack touchscreen
Stored product programmes and loading configurations keep operator control visible and changeovers practical.
Operator experienceSimple control.
Simple control.
Flexible changeovers.

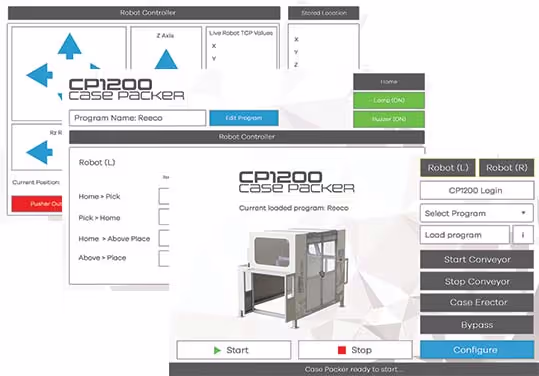

EasyPack is the visual interface designed for Reeco’s CP case packers. It brings robot, conveyor, tooling and surrounding equipment controls into one place, so operators can change programmes and packing patterns without prior programming knowledge.
- Quick changes for variable products and packing patterns.
- Visual controls designed around the operator.
- Password-protected access for authorised programme changes.
Technical specifications
Higher output. Clear parameters.
Review the CP1200 configuration, tooling and space requirements. Reeco will confirm the installed specification for your product and line.
Confirm your configuration| Configuration | Two robot arms |
|---|---|
| Stated packing capacity | 1,200 cycles per hour |
| Robot options | OMRON TM20, TM12 or TM14 |
| TM20 robot payload | 20 kg per arm |
| TM20 reach | 1,100 mm per arm |
| Stated footprint | 1,780 × 2,480 mm |
| Tooling | Gripper, vacuum and bespoke options |
| Standard side-gripper width | 380 mm maximum |
| Controls | Integrated EasyPack touchscreen |
| Product changeover | Stored programmes and configurations |
Achievable throughput depends on the product, pick quantity, packing pattern and operating sequence. A cycle is not necessarily one completed case. Confirm the installed layout and access requirements for the selected configuration.
