Compact by design
A single-arm layout provides a smaller footprint than the CP1200 while preserving the range’s tooling and EasyPack controls.
CP600 · Single-arm case packer
Case packing,
made compact.

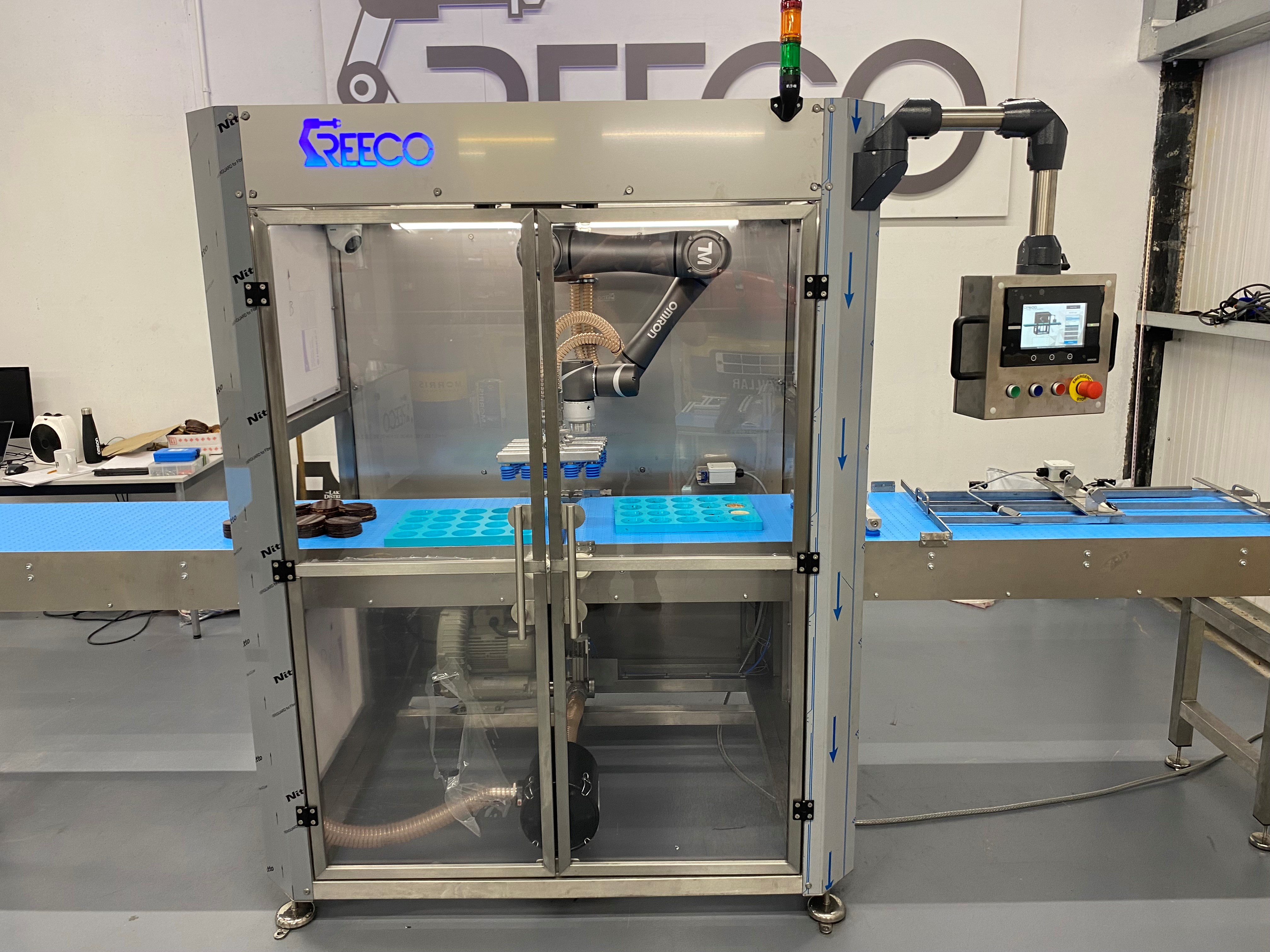

Bring automated case and tray packing into your existing line. The CP600 combines a single OMRON robot arm, product-specific tooling and EasyPack controls in a compact cell.
OMRON TM20, TM12 or TM14
Gripper, vacuum or bespoke tooling
- Stated cycles per hour
- 600
- Robot configuration
- 1 arm
- TM20 payload
- 20 kg
- Stated footprint
- 1,479 × 1,750 mm
Why CP600Small footprint.
Small footprint.
Practical automation.
When floor space is limited, the CP600 keeps the automation simple: one robot arm, one integrated control point and the tooling needed to handle cartons, bottles, pouches or bags into boxes and trays.
Handling that follows the product
Choose side grippers, vacuum heads or bespoke tooling based on the product’s dimensions, weight, surface and packing pattern.
Ready for operators
Stored product programmes and loading configurations make changeovers straightforward through the integrated EasyPack touchscreen.
Reeco case packing demonstrationOpen YouTube ↗
See it in a workflow
Pack consistently, then pass the case downstream.
The CP600 is designed to sit alongside existing manual or automated processes. Reeco can assess the packing task, configure the tool and prepare the system off-site before installation and line integration.
- Product-specific pick quantity and loading pattern.
- Standard side gripper width up to 380 mm.
- Integrated with the wider Reeco end-of-line approach.
Related Reeco end-of-line demonstrationMore videos ↗
End-of-line context
From packed case to finished pallet.
Case packing is one part of a connected end-of-line. This related Reeco demonstration shows how packed products can continue into palletising and downstream handling.
This is a related application film, not a CP600 product specification video.
How it worksA repeatable process.
A repeatable process.
From infeed to case.
Reeco configures the CP600 around your product, case or tray and required output. One robot arm follows a defined sequence, using the selected tooling and packing pattern.
01 / Pick
Collect the product
The selected tool picks products from the infeed in the required quantity.
02 / Orient
Follow the pattern
The stored programme controls movement and orientation for the loading pattern.
03 / Load
Place into the case
Products are placed into the box or tray, ready for the next stage of your line.
Tooling & control
Talk through your product Configured around what you pack.
The right tool is selected with Reeco around the complete pick: product shape, load, surface, case geometry and required pattern.
Side grippers
A firm grip for suitable boxes or bottles, with a stated standard maximum gripping width of 380 mm.
Vacuum heads
Tailored vacuum tooling for products that are not suited to side gripping, with the surface and load in mind.
EasyPack touchscreen
Stored product programmes and loading configurations keep operator control visible and changeovers practical.
Operator experienceSimple control.
Simple control.
Flexible changeovers.
EasyPack is the visual interface designed for Reeco’s CP case packers. It brings robot, conveyor, tooling and surrounding equipment controls into one place, so operators can change programmes and packing patterns without prior programming knowledge.
- Quick changes for variable products and packing patterns.
- Visual controls designed around the operator.
- Password-protected access for authorised programme changes.
Technical specifications
Small footprint. Clear parameters.
Review the CP600 configuration, tooling and space requirements. Reeco will confirm the installed specification for your product and line.
Confirm your configuration| Configuration | Single robot arm |
|---|---|
| Stated packing capacity | 600 cycles per hour |
| Robot options | OMRON TM20, TM12 or TM14 |
| TM20 robot payload | 20 kg |
| Stated footprint | 1,479 × 1,750 mm |
| Tooling | Gripper, vacuum and bespoke options |
| Standard side-gripper width | 380 mm maximum |
| Controls | Integrated EasyPack touchscreen |
| Product changeover | Stored programmes and configurations |
Achievable throughput depends on the product, pick quantity, packing pattern and operating sequence. A cycle is not necessarily one completed case. Confirm the installed layout and access requirements for the selected configuration.
For higher stated outputCP1200 · 1,200 cycles / h
